MT VERNON IAE Main Assembly

Name: Quadra Fire Mt Vernon-Ae Pellet Insert Parts
Brand: HHT
SKU: MON-QDF-MTVERNINSAE
Availability: InStock

Switch between sub-assemblies:

Total Price: $0.00

1
58531MON Hopper Lid Pmh58531MON
$
656
07
Suggested: 1
1
58525MON Hopper Lid Mbk58525MON
$
422
49
Suggested: 1
1
58520MON Hopper Lid Csb58520MON
$
492
38
Suggested: 1
1
58533MON Hopper Lid Powder Coat Willow58533MON
Discontinued
2
75760MON Top Hinge Assembly75760MON
$
112
24
Suggested: 1
3
76028MON Top Pmh76028MON
$
888
04
Suggested: 1
3
75961MON Top Mbk75961MON
$
518
33
Suggested: 1
3
75523MON Top Csb75523MON
$
580
07
Suggested: 1
3
76251MON Top,Powder Coat Willow76251MON
Discontinued
4
45670MON Catch Clip45670MON
$
46
08
Suggested: 1
6
42785MON Bracket Catch42785MON
$
42
46
Suggested: 1
7
55555MON Glass Assembly55555MON
$
66
03
Suggested: 1
8
41448MON Backer Side Window41448MON
$
29
58
Suggested: 1
9
58144MON Hinge Male58144MON
$
45
15
Suggested: 1
10
41462MON Baffle41462MON
$
247
20
Suggested: 1
11
59934MON Latch Baffle59934MON
$
22
54
Suggested: 1
12
59466MON Intake Shield59466MON
$
18
28
Suggested: 1
13
58165MON Hinge Pin Retainer58165MON
$
44
53
Suggested: 1
14
58152MON Hinge Pin (2 Ea)58152MON
$
53
54
Suggested: 1
15
49816MON Door Left Powder Coat Willow49816MON
Discontinued
15
49864MON Door Lh Mbk49864MON
$
416
72
Suggested: 1
15
49872MON Door Lh Pmh49872MON
$
715
89
Suggested: 1
15
49862MON Door Lh Csb49862MON
$
501
84
Suggested: 1
16
54688MON Front Lower Csb54688MON
$
501
84
Suggested: 1
16
54695MON Front Lower Pmh54695MON
$
688
71
Suggested: 1
16
54692MON Front Lower Mbk54692MON
$
307
93
Suggested: 1
16
54697MON Front Lower Powder Coat Willow54697MON
Discontinued
17
50005MON Door Rh Pmh50005MON
$
715
89
Suggested: 1
17
49995MON Door Rh Csb49995MON
$
501
84
Suggested: 1
17
49997MON Door Rh Mbk49997MON
$
341
03
Suggested: 1
17
50105MON Door Right Powder Coat Willow50105MON
Discontinued
18
54865MON Front Upper Pmh54865MON
$
1,069
01
Suggested: 1
18
54862MON Front Upper Mbk54862MON
$
616
28
Suggested: 1
18
54866MON Front Upper Powder Coat Willow54866MON
Discontinued
18
54858MON Front Upper Csb54858MON
$
715
89
Suggested: 1
19
49050MON Door Assembly49050MON
$
398
58
Suggested: 1
20
40560MON Ashpan Door Painted40560MON
$
170
90
Suggested: 1
21
40251MON Ash Pan Assembly40251MON
$
209
64
Suggested: 1
22
42596MON Bottom Mbk42596MON
$
341
27
Suggested: 1
22
42430MON Bottom Csb42430MON
$
501
84
Suggested: 1
22
42669MON Bottom-Powder Coat Willow42669MON
Discontinued
22
42621MON Bottom Pmh42621MON
$
602
62
Suggested: 1
23
55340MON Gasket Rope Ash Door55340MON
$
61
36
Suggested: 1
24
55200MON Gasket Door Rope55200MON
$
61
36
Suggested: 1
25
65419MON Magnetic Switch65419MON
$
36
74
Suggested: 1
26
59938MON Latch Bracket Assembly59938MON
$
30
62
Suggested: 1
27
73560MON Side Pmh73560MON
$
573
07
Suggested: 1
27
73350MON Side Csb73350MON
$
498
56
Suggested: 1
27
73481MON Side Mbk73481MON
$
332
63
Suggested: 1
27
73691MON Side-Powder Coat Willow73691MON
Discontinued
28
77593MON Vacuum Switch77593MON
$
88
87
Suggested: 1
29
69434MON Power Supply Assembly69434MON
$
284
28
Suggested: 1
30

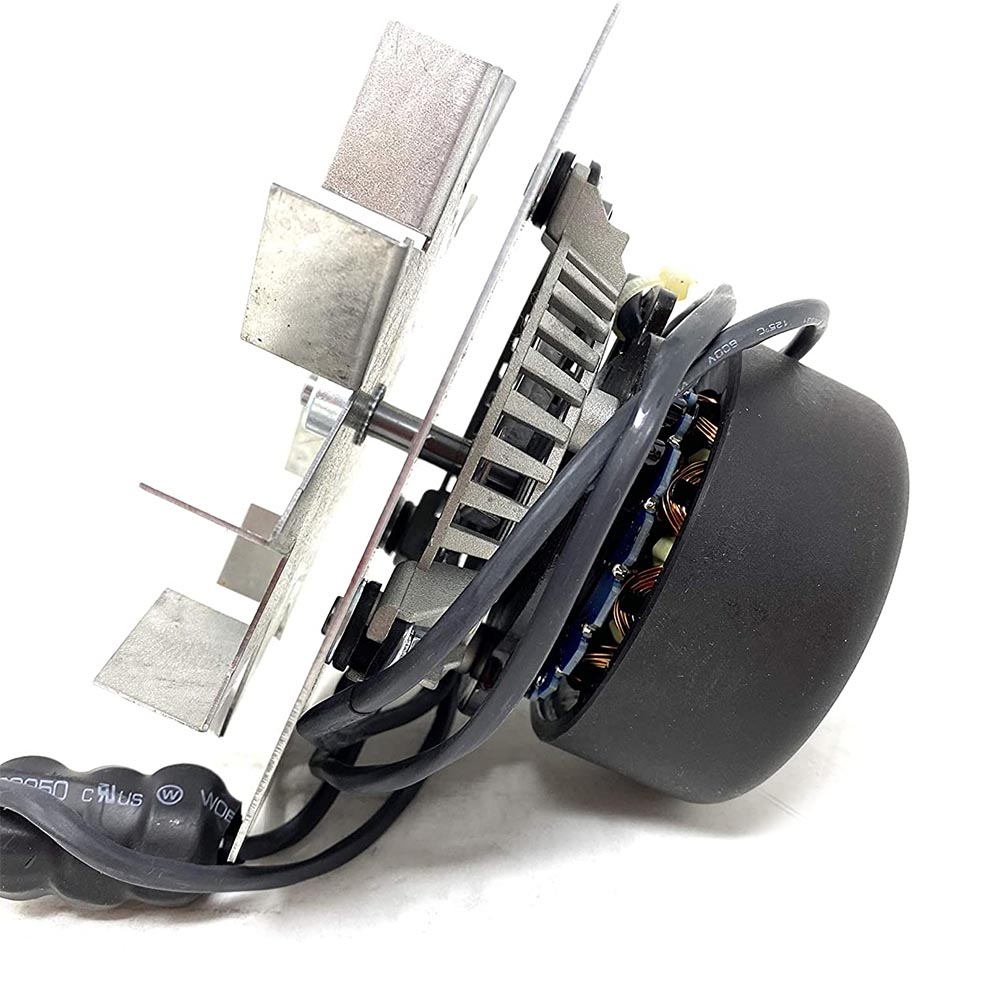

46246MON Combustion Blwr Mtr W/Fan - MOTOR ONLY46246MON
$
181
13
Suggested: 1
31
46627MON Control Board Assembly46627MON
$
714
36
Suggested: 1
32
46929MON Convection Blower46929MON
$
284
28
Suggested: 1
33
55143MON Gasket Blower Convection55143MON
$
30
62
Suggested: 1
34
50681MON Elbow Catch50681MON
$
36
31
Suggested: 1
34
48745MON Detent Pin 3/16X1.548745MON
$
12
58
Suggested: 1
35
51597MON Exh Trans Flue Collar Asy51597MON
$
146
84
Suggested: 1
36
48812MON Disc Snap Manual Reset48812MON
$
38
36
Suggested: 1
37
42882MON Bracket Hopper Magnet42882MON
$
49
80
Suggested: 1
38
52194MON Feed Assembly52194MON
$
356
01
Suggested: 1
39
53230MON Firepot Riser Assembly53230MON
$
761
91
Suggested: 1
40
41101MON Auto Clean Mtr/Arm Assy41101MON
$
497
81
Suggested: 1
ZZ
55141MON Gasket Blower Combustion55141MON
$
32
40
Suggested: 1
ZZ
42253MON Blower Mtr Gkt Ae 10Pk42253MON
$
208
62
Suggested: 1
ZZ
55249MON Gasket Flue Adapt Flange55249MON
$
21
13
Suggested: 1
ZZ
77452MON Twin Ball Catch/Striker77452MON
$
85
34
Suggested: 1
ZZ
46256MON Combustion Motor, Fan, & Gasket (No Housing)46256MON
$
41
44
Suggested: 1
ZZ
59944MON Latch Draw59944MON
$
30
62
Suggested: 1
ZZ
51696MON Extruded Gasket Pkg 1051696MON
$
42
34
Suggested: 1
ZZ
54924MON Fuse 15A Slow Iec 10 Pak54924MON
$
42
46
Suggested: 1
ZZ
74134MON Speed Nut 5/1674134MON
Discontinued
ZZ
71908MON Roller Catch (2 Ea)71908MON
$
39
38
Suggested: 1
ZZ
55090MON Gasket 1/8X1-1/4 X 10Ft55090MON
$
45
15
Suggested: 1
